Product teams often specify “lightweight denim” when they actually want chambray. This common error leads to rejected samples due to unexpected differences in handfeel, opacity, and shrinkage rates.
While they share a visual aesthetic, the structural distinction is clear. Chambray fabric is a yarn-dyed plain-weave woven constructed with a colored warp and a white weft. This creates a denim-like appearance but with a breathable, grid-like structure rather than diagonal ribs.
This guide covers the commercial decisions required to source correctly. We break down weave patterns, fabric weight (GSM), yarn counts, and specific strategies for sourcing from China.
If you are building a full apparel line, see our broader guide to sourcing clothing. Need help verifying mills and lab reports? Our team can help.
Table of Contents
What is Chambray Fabric?
Chambray fabric is a plain-weave textile, typically made from cotton, that features a colored yarn in the warp and a white or unbleached yarn in the weft. This 1-over-1 construction creates a distinctive “heathered” or frosted appearance. Unlike denim, which utilizes a diagonal twill weave, chambray uses a symmetrical grid structure. This makes the fabric reversible, meaning the face and the underside appear identical.
Think of the construction like a basic window screen: vertical and horizontal wires cross over and under each other evenly. This simple structure results in a fabric that is significantly lighter (typically 150–180 GSM) and more breathable than denim, despite sharing a similar indigo aesthetic.
Fiber Composition
While the weave defines the structure, the fiber dictates the performance. Manufacturers vary the composition based on the end-use:
- 100% Cotton: The industry standard for shirts and dresses, offering a soft handfeel and hypoallergenic properties.
- Linen Blends: Adding linen increases airflow and creates a slubby texture, though it wrinkles easily. For a smoother drape with similar breathability, some programs substitute lyocell fiber.
- Synthetic Blends: Integrating polyester or PBT fibers improves elasticity and crease resistance, which is critical for corporate uniform longevity.
Core Concepts: The Mechanics of Chambray Construction
To source chambray effectively, one must look beyond the color and understand the mechanical interaction between the yarn and the loom. The structural specifications—weave density, yarn count, and finishing—determine whether the fabric acts like a premium dress shirt or a disposable fast-fashion garment.

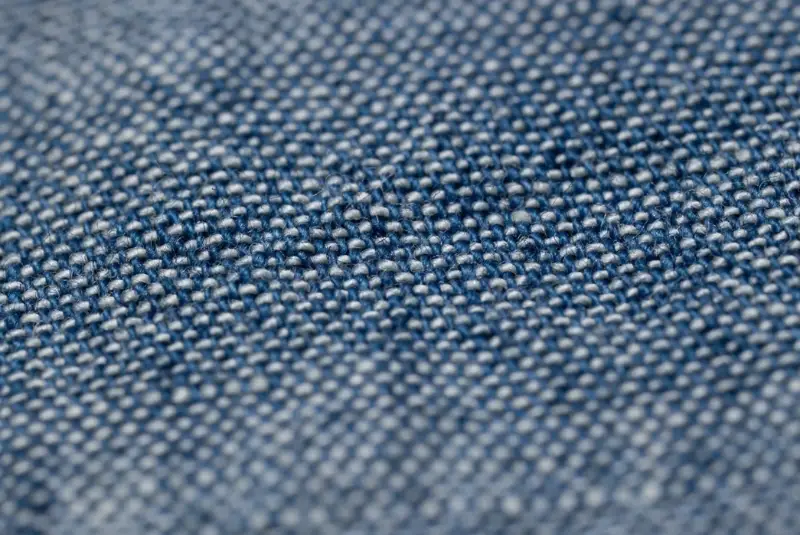

1) Chambray Weave Pattern (The Structural Core)
At its fundamental level, chambray is defined by a plain weave (1/1) structure. In this configuration, the warp yarn passes over one weft yarn and under one weft yarn in a continuous, alternating sequence.
Unlike complex weaves where yarns “float” over multiple threads (like satin or twill), the 1/1 interaction creates the maximum number of interlacing points per square inch.
- Structural Result: Because yarns are locked tightly at every intersection, chambray possesses a natural structural “crispness,” even at low weights.
- Visual Result: The fabric is balanced. Technically, the face and reverse are identical, simplifying the cutting process as there is no structural “wrong side.”
2) The Chambray vs. Denim Matrix
The most common sourcing error is confusing chambray with lightweight denim. While they often utilize the same indigo dyes, their mechanical architecture is distinct.
- Denim (Twill Weave): The weft passes under two or more warp threads. This creates a diagonal rib line (wale) and a high-contrast face (blue) vs. back (white).
- Chambray (Plain Weave): No diagonals. The result is a consistent “salt and pepper” grid texture.
⚙️ Technical Comparison Matrix
| Feature | Chambray | Denim |
|---|---|---|
| Weave Structure | Plain (1/1) | Twill (e.g., 2/1, 3/1) |
| Visual Texture | Mottled grid; “Salt & Pepper” | Visible diagonal lines (wales) |
| Face/Back | Balanced (Similar appearance) | High Contrast (Blue Face/White Back) |
| Drape Mechanics | Crisp, airy, flexible | Dense, stiff, prone to torque |
| Primary Risk | Seam Slippage (if density is low) | Leg Twist (skewing) |

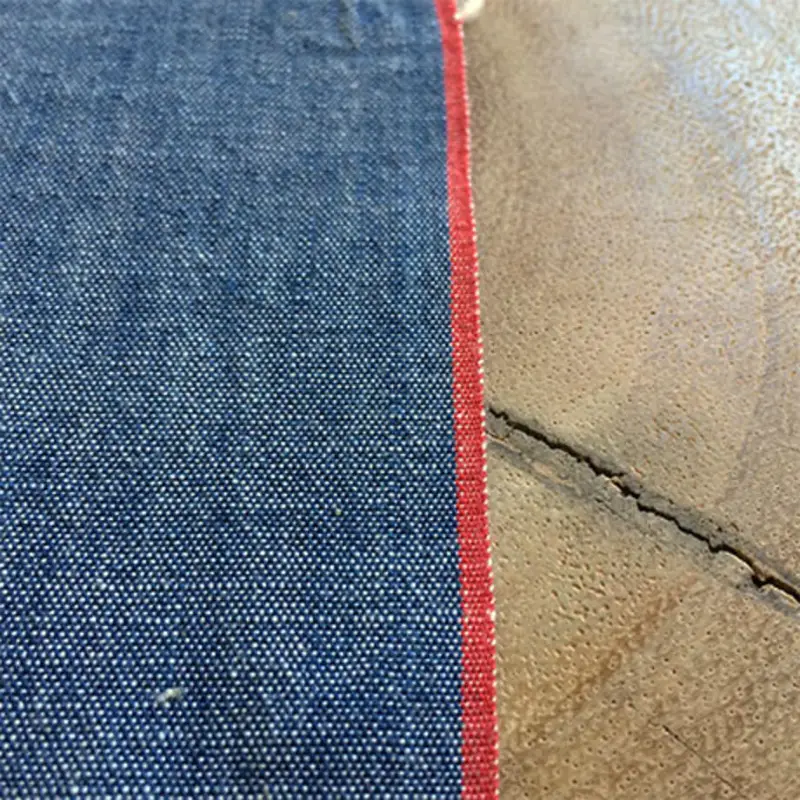

3) Indigo Dyed vs. Piece Dyed
To achieve the classic workwear aesthetic, buyers must specify Yarn-Dyed Indigo. In this process, only the vertical (warp) yarns are dyed, while the horizontal (weft) yarns remain natural white. The optical mixing of blue and white creates the signature frosted appearance.
⚠️ Sourcing Alert: If you do not specify “Yarn-Dyed,” factories may supply Piece-Dyed chambray. This means the entire fabric bolt was dipped in dye after weaving, resulting in a flat, solid color without the characteristic white speckle.
4) Typical Yarn Counts
In the cotton system, a higher count indicates a finer (thinner) yarn.
- 40s (40/1): The commercial standard. Used for utility shirts and workwear. It offers durability and opacity.
- 50s–60s: Premium shirting. Finer yarns create a silkier handfeel and lighter drape, ideal for summer dresses.
🧠 Expert Insight: Higher counts (60s) require higher density (Ends Per Inch) to maintain opacity. If a factory quotes a low price for 60s chambray, verify the density. Low-density fine yarns result in a sheer, cheesecloth-like fabric that tears easily.

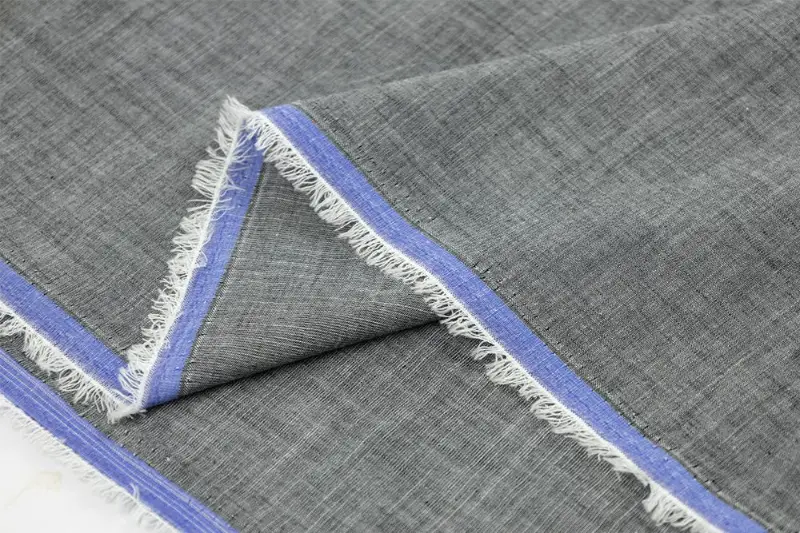

5) Fabric Weight (GSM) Guide
Factories in China quote in GSM (Grams per Square Meter). Ensure your specs align with the end-use:
- Lightweight (110–140 GSM): Summer shirting. Note: Requires French seams or felled seams to prevent fraying.
- Midweight (150–210 GSM): Structured button-downs and tunics. The easiest weight to sew.
- Heavyweight (220–300+ GSM): Overshirts and light jackets. Check: Confirm the mill has looms capable of beating this density in a plain weave.
6) Finishes & Treatments
Raw chambray can feel “dry” or scratchy. Specify these finishes in your RFQ:
- Sanforization: A mechanical compaction process that pre-shrinks the fabric. Critical for cotton programs to prevent size distortion after washing.
- Enzyme Wash: Uses cellulose enzymes to erode surface fuzz, creating a soft, premium handfeel.
- Compliance: Verify finishes meet REACH (EU) chemical standards or CPSIA (US) requirements.
Why Choose Chambray? Strategic Advantages for Apparel Lines
For sourcing managers, selecting chambray fabric is a strategic move to optimize product-market fit. While denim dominates the “rugged” category, chambray fills the gap for “refined utility.” It offers the visual language of workwear with the drape of a dress shirt, reducing returns caused by stiffness or overheating in warm-weather capsules.
1. Boosts Summer Sell-Through
chambray fabric utilizes a 1/1 plain weave structure that naturally creates micropores between yarns. Unlike the dense packing of twill, this allows for significant airflow. This thermal regulation addresses the primary consumer complaint in summer denim—heat retention—driving repeat purchases in Q2/Q3.
2. Reduces Production Waste
The fabric features a “balanced” face and reverse: both sides appear nearly identical. This simplifies the cutting process and eliminates “wrong side” assembly errors. It also enables cost-saving unlined designs, such as visible interior plackets or rolled cuffs, without requiring expensive facings.
3. Controls Unit Economics
Chambray allows for precise margin engineering. You can tune specifications based on GSM bands and yarn counts (standard 40s vs. premium 60s) to hit specific price points. If you are already sourcing basics via a custom T-shirt manufacturer, adding chambray allows for category expansion using similar cotton supply chains.
Decision Guide: Chambray vs. Denim
Use this matrix to determine the correct fabric for your SKU:
| Feature | Choose Chambray When… | Choose Denim When… |
|---|---|---|
| Drape | You need fluid drape for body-skimming silhouettes. | You need structure and rigid shape retention. |
| Climate | The garment is for high-humidity or summer markets. | The garment requires wind protection or insulation. |
| Seams | You need low bulk for gathered seams or pleats. | You need high abrasion resistance for utility wear. |
If you want mill verification + QC on bulk fabric to ensure weave density matches your sample, talk to our sourcing team. Contact LeelineSourcing for a Quote
The Verdict
Chambray is defined by mechanical specificity, not just its blue aesthetic. At its core, it is a plain weave construction balancing a colored warp with a white weft, offering the visual depth of denim without the heavy, diagonal rib structure. Commercial success relies on controlling the invisible levers: specifying the correct yarn count (typically 40s for utility, 60s for premium), locking in the GSM band, and ensuring crocking standards are met before mass production. Remember: Chambray vs. denim differences start at the loom, not the wash.
