What makes carbon fiber fabric a game-changer in modern industries? Composed of thin, tightly woven carbon fibers, it is pivotal in aerospace, automotive, and some sportswear manufacturer applications for its transformative material properties.
Carbon fiber is prized for three key traits: unmatched strength (exceeding steel), lightweight design (up to 50% lighter than aluminum), and versatility (adaptable to diverse applications like electronics and medical devices).
This guide breaks down carbon fiber fabric. It follows its path from raw material to the final product. We explain the production steps and the value chain clearly.
Table of Contents
From Raw Material to Carbon Fiber Structure
Carbon fiber fabric’s exceptional properties come from selecting the right precursor material. These precursors are the foundations of the remarkable strength that carbon fiber shows.
▶ What are carbon fiber precursors?
Precursors are organic polymers made of long molecular chains connected by carbon atoms. Think of them as the carbon-rich starting point for creating high-performance fibers. About 90% of commercial carbon fibers come from polyacrylonitrile (PAN), while the remaining 10% use rayon or petroleum pitch.
▶ The role of PAN, rayon, and pitch
Each precursor creates carbon fiber with different strengths. PAN is effective due to its high carbon content of 67.9%. This leads to a great carbon yield of 50-55%. When heat-treated, PAN also forms ladder structures. PAN keeps its original structure while processing. It maintains good orientation and offers excellent mechanical performance.
Pitch-based carbon fibers have high modulus and great thermal conductivity. However, they usually have lower tensile strength compared to PAN-based fibers. They form without mechanical stretching, making processing easier.
Rayon-based carbon fibers have lower tensile strength but excel in specific applications like rocket motors. Their crenulated cross-section provides good interlaminar shear performance and strong bonding with resins.
Types of Carbon Fiber Fabrics
Quick Preview:
| Type of Carbon Fiber Fabric | Structure Description | Key Performance Advantages | Typical Applications |
|---|---|---|---|
| Unidirectional (UD) Carbon Fiber | Fibers aligned parallel in one direction (no interlacing). | – Max tensile strength along a single axis (3x stronger than structural steel at 1/5 the weight). | Aerospace components (e.g., aircraft wings), high-performance sports equipment (e.g., bicycle frames, golf club shafts). |
| Woven Carbon Fiber | Fibers interlaced in patterns: plain (1×1), twill (2×2/4×4), or harness satin (4HS/8HS). | – Plain weave: High stability but low flexibility. – Twill weave: Stronger, more formable with fewer crimps. | Automotive parts (e.g., body panels), industrial molds, consumer goods (e.g., luggage, phone cases). |
| Non-Woven Carbon Fiber | Randomly distributed fibers bonded by resin/binder (isotropic structure). | – Uniform strength in all directions. – No weaving defects; easier to mold into complex geometries. | Pressure vessels, composite tooling, and applications requiring balanced structural integrity (e.g., marine components). |
| Prepreg Carbon Fiber Cloth | Fabrics pre-impregnated with uncured resin (frozen to prevent early curing). | – Even resin distribution for stronger, stiffer bonds post-curing. – Reduced waste, better resin control. | High-precision parts (e.g., aircraft components, racing car chassis), and applications needing consistent material properties. |
Suggested Reading
- Pongee Fabric: The Ultimate Choice for Durability and Style
- 9 Best Fabrics for T-Shirts: Maximize Print Quality & Durability

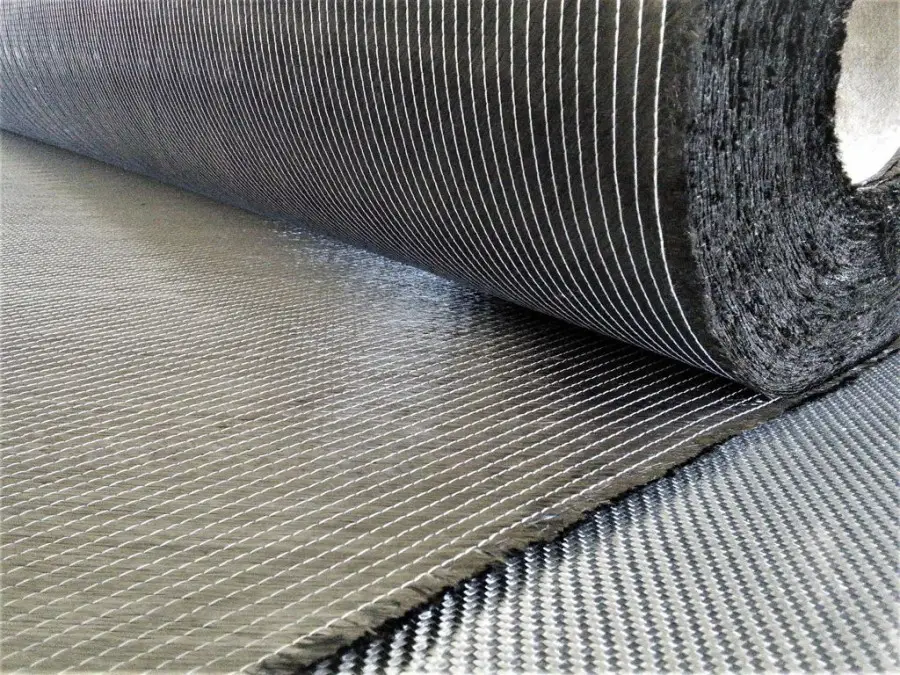

How Carbon Fiber Fabric is Made
Carbon fiber fabric manufacturing requires specialized processes that reshape raw precursors into high-performance materials. The final properties and quality of carbon fiber fabric depend on these precise techniques.
Step 1: Precursor Production
The process begins by polymerizing polyacrylonitrile (PAN), the main precursor. It can also use other materials like pitch or cellulose to form a fibrous resin. This resin is then spun into thin, continuous precursor fibers using techniques like wet-spinning or dry-jet wet-spinning.
Step 2: Stabilization (Oxidation)
Precursor fibers are heated in air (200–300°C) to oxidize their structure, stabilizing them for high-temperature processing. Temperature and duration are precise: under-stabilization causes deformation; over-stabilization weakens fibers.
Step 3: Carbonization
Stabilized fibers go into a high-temperature furnace (1,000–2,000°C) with inert gas like argon or nitrogen. This process burns off non-carbon elements such as hydrogen and nitrogen. This leaves pure, aligned carbon fibers with exceptional strength.
Step 4: Surface Treatment and Sizing
Fibers receive surface treatments (e.g., oxidation, plasma) to enhance bonding with composite resins. A protective sizing (epoxy, polyurethane) is then applied to guard against damage during weaving or handling.
If you want to know more about Twill Fabric and Ice Silk, reading our guide will help you find the answer you want.
Carbon Fiber Fabric in Clothing
High-Performance Cycling Jerseys:
Rapha and Castelli add carbon fiber-reinforced panels to their cycling jerseys. These panels reinforce high-stress areas, such as the shoulders and elbows. This enhances tear resistance while keeping the garment lightweight. It’s crucial for competitive cyclists who need aerodynamic efficiency.
Fire-Resistant Workwear:
Industrial safety brands such as Bulwark or Carhartt use carbon fiber-blended fabrics in flame-resistant (FR) coveralls or jackets. Carbon fiber helps deflect heat and adds strength. It keeps workers safe in hot places, like welding or oil rigs, while still allowing them to move freely.
Luxury Avant-Garde Fashion:
Designers like Iris van Herpen or Rick Owens incorporate carbon fiber fabric into couture pieces, leveraging its sleek, metallic texture and sculptural rigidity. For instance, van Herpen’s “Crystallization” collection uses carbon fiber panels. This creates futuristic, angular shapes that push against traditional fabric styles.
Expert Insight: Your clothing can gain practical edge with carbon fiber fabric—its lightweight, tear-resistant traits shine for daily use (commutes, hikes) without adding bulk. Pair it with stretchy, soft fabrics like spandex to balance rigidity, keeping comfort key while staying durable.
Vaishali P., Private label manufacturer
Conclusion
Carbon fiber delivers exceptional strength-to-weight performance that few materials can match. The path from choosing precursors to the final fabric shows how complex processes make high-performance materials. This includes stabilization, carbonization, and weaving.
The right supplier plays a crucial role in ensuring quality and performance for your next project with carbon fiber materials. Please reach out to us at leelineSourcing.com or [email protected] if you need a China sourcing agent or want more information. Carbon fiber can change your products when selected and applied correctly. It delivers a perfect balance of strength, weight, and durability that other materials rarely match.
Related Resources
- 8 Leading Peru Clothing Manufacturers: Prices, MOQs & Reviews
- 8 Leading Golf Polo Shirts Manufacturers in USA: Prices & Minimum Orders Compared
FAQs
1. Is carbon fiber fabric comfortable to wear daily?
Carbon fiber is inherently rigid due to its stiff fibers, so pure carbon fiber garments feel less flexible than cotton or fleece. It’s often mixed with softer materials like spandex and elastic in performance wear. This blend balances rigidity and comfort, especially in targeted areas like joints in cycling gear.
2. How durable is carbon fiber fabric compared to polyester or nylon?
Carbon fiber is far more abrasion-resistant and tear-proof than polyester or nylon. It handles heavy use, like hiking or industrial work, without fraying. But it might crack if bent too much or hit hard, unless it’s mixed with flexible fibers.
3. Why is carbon fiber fabric so expensive?
Production costs are high: carbon fibers require energy-intensive processes (stabilization, carbonization) and specialized equipment. Blending with fabrics and adding protective treatments further raises prices, limiting mass production.
