The term “water resistant” on fabric labels might not mean what you think. A fabric needs to withstand over 1,000mm of water pressure to qualify as “waterproof.” Many brands use the “water resistant” label without explaining its real meaning to customers.
Most mid-range waterproof fabrics can handle 5,000mm of water resistance. The actual performance differs among materials. The market offers synthetic options like Polyurethane Laminate (PUL) and Thermoplastic Polyurethane (TPU). Natural alternatives include Extra-Long-Staple cotton which resists water naturally.
Product descriptions don’t tell the whole story. In this piece, you’ll find what brands often skip telling you about water resistant fabric for clothing and other uses. As a professional custom clothing manufacturer, we’re showing you everything you need to know before buying – from hidden rating systems to durability issues.
Table of Contents
What Makes A Fabric Water Resistant?
The science behind water resistant fabric depends on hydrophobicity—literally “fear of water.” Water resistance exists on a spectrum measured by scientific tests rather than being an absolute quality. Fabrics must handle water pressure of at least 1,500mm in the Hydrostatic Head Test to be considered water-resistant.
How water resistance is achieved
Manufacturers make fabrics water-resistant by reducing their surface energy. This change causes water to bead up instead of soaking in. They use two main approaches.
The first approach makes tight, dense weaves. These structures block water molecules from passing through. Fabrics with higher thread counts and closer weaves have smaller holes between fibers, measured in deniers.
Surface chemistry modifications are the second method. Water droplets form with a high contact angle when they hit a water-resistant surface. This angle shows how much a droplet “sits up” rather than spreads out. A surface needs contact angles above 90 degrees to be truly hydrophobic. Some treatments create remarkable contact angles up to 150 degrees for different liquids.
Coatings vs. natural resistance
| Comparison Criteria | Synthetic Coatings (e.g., Polyester/Nylon with Treatments) | Natural Resistance (e.g., Wool) |
|---|---|---|
| Typical Materials | Polyester, Nylon | Wool, Cotton (requires post-treatment) |
| Waterproof Mechanism | Relies on chemical coatings (e.g., PU, silicone, PFOA-containing Teflon) to create artificial barriers. | Relies on fiber structure (e.g., wool’s overlapping scales) or natural oils (e.g., lanolin). |
| Waterproof Principle | Coatings fill fiber gaps to block water penetration. | Physical structure (scales) or natural oils repel water; droplets bead and roll off. |
| Absorbency | Low absorbency, but may leak after prolonged exposure. | Wool absorbs 30% of its weight in water without feeling wet; cotton absorbs heavily but dries slowly. |
| Durability | Coatings degrade with friction and washing; short-term effectiveness. | Natural structure withstands wear, but lanolin washes out over time. |
| Eco-Friendliness | Fluoropolymers (e.g., PFOA) persist in ecosystems and accumulate in human bodies. | Biodegradable, no synthetic chemicals. |
| Best Applications | Cheap rain jackets, disposable gear, backpacks. | High-end outdoor apparel (e.g., wool hiking socks), baby clothing, eco-friendly textiles. |
Common misconceptions about water resistance
The biggest problem comes from mixing up “waterproof,” “water-resistant,” and “water-repellent.” Water resistant fabrics block some water but aren’t completely waterproof. Water-repellent fabrics make water bead up and roll off the surface.
There’s another reason people get confused—they think waterproof means uncomfortable and stuffy. Water resistance and breathability can actually work together, though you usually have to compromise between them. Gore-Tex stands out because it manages to be waterproof and breathable.
Many people don’t know that water repellency declines when the DWR (Durable Water Repellent) coating wears off. The water-resistant membrane stays intact, but the outer fabric starts soaking up water.
Related Resources:
- Top 10 China Sweatshirt Manufacturers & Suppliers
- 12 Best Australian Hoodie Manufacturers for Bulk Orders in 2025
The Hidden Rating Systems Manufacturers Rarely Explain
Marketing teams often use buzzwords like “waterproof” and “water-resistant.” However, they don’t always explain what these terms really mean. Technical ratings determine how well water resistant fabrics actually work when you need them most.
Hydrostatic head and what it means

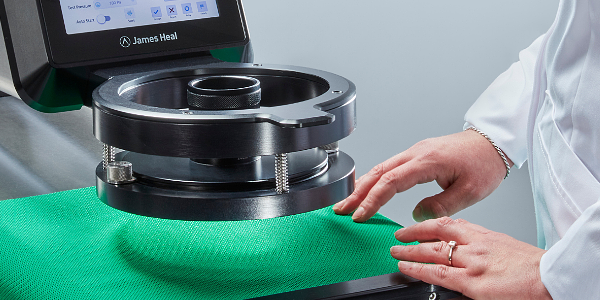

Hydrostatic head testing serves as the foundation for waterproof ratings. Testers stretch fabric under a water-filled graduated cylinder. They measure how many millimeters of water the fabric can hold back before leaks appear. This creates a rating that relates directly to performance:
- 1,500-5,000mm: Works well in light rain and brief showers
- 5,000-10,000mm: Handles steady, moderate rainfall
- 10,000-40,000mm+: Stands up to heavy downpours and extreme conditions
Fabrics need a minimum hydrostatic head rating of 10,000mm to qualify as waterproof rather than just water-resistant.
Breathability vs. waterproofing
Breathability matters just as much as waterproofing, though people often overlook it. This measures how well moisture vapor escapes from inside the garment. Manufacturers use either Moisture Vapor Transmission Rate (MVTR) or Resistance to Evaporative Heat Transfer (RET).
Regular fabrics show an inverse relationship between waterproofing and breathability. A fully waterproof material blocks moisture from entering but also traps sweat and humidity inside. That’s why rubber raincoats keep rain out but leave you feeling sweaty and uncomfortable.
Expert Tip: For custom clothing retailers, using water-resistant fabrics is key to creating durable, versatile pieces customers love for any weather. Opt for eco-friendly coatings to meet 2025’s demand for sustainable, high-performing apparel.
Types Of Water Resistant Fabric And Their Real Performance
Each type of water resistant fabric has its own strengths and limits based on what you need.

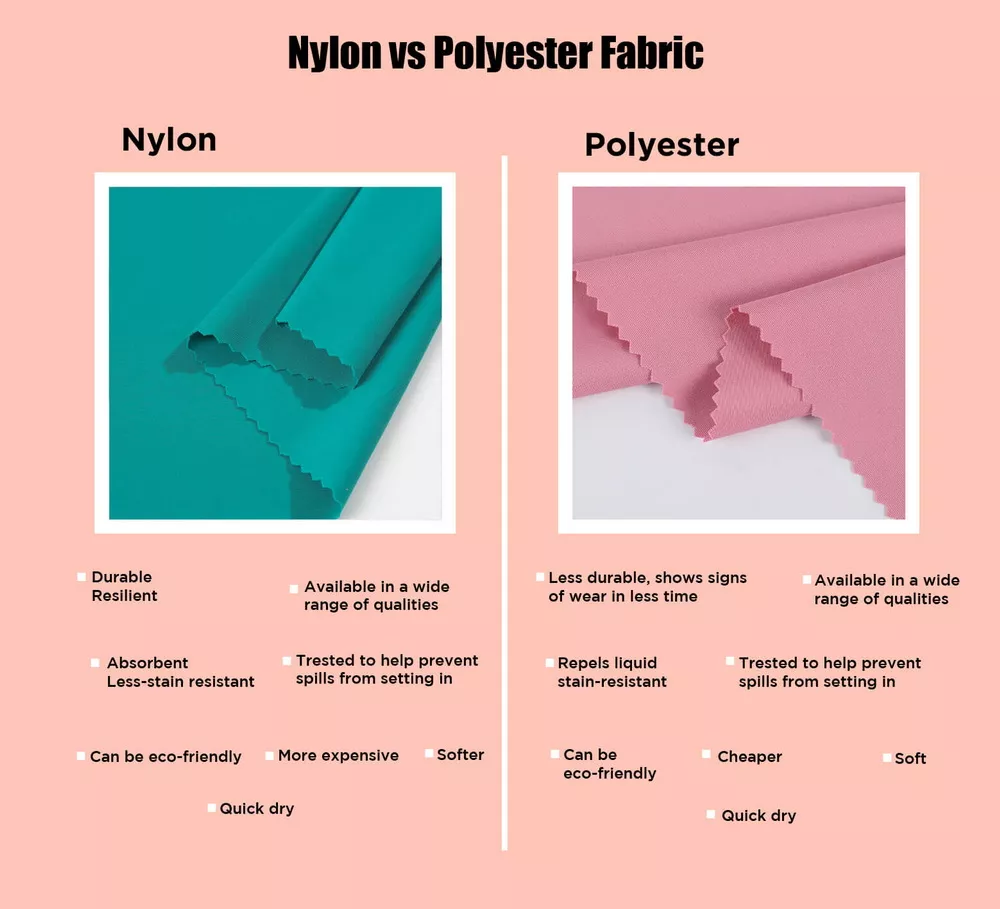

▶ Polyester and nylon
These synthetic fabrics are the foundations of many water resistant products. Polyester naturally repels water with a moisture regain of only 0.4%, while nylon sits at 4%. Polyester pushes water away instead of soaking it up, which helps it avoid the stretching and heaviness that makes nylon heavy when wet.
Both materials need tight weaves to keep water out, but neither can be completely waterproof without extra treatments. Many jacket manufacturers add Durable Water Repellent (DWR) coatings to improve their natural properties.
▶ ELS cotton and wool
Natural fibers can resist water better than you might think. Extra-Long-Staple (ELS) cotton from California creates a dense, tight weave from long fibers. This structure makes it perfect for extreme weather gear and waterproof bed protectors.
Wool is interesting—it keeps water out but can hold up to 30% of its weight in water without feeling wet. Manufacturers often use lanolin oil coatings or boil the fabric to improve wool’s natural resistance. These lanolin treatments need regular touch-ups.

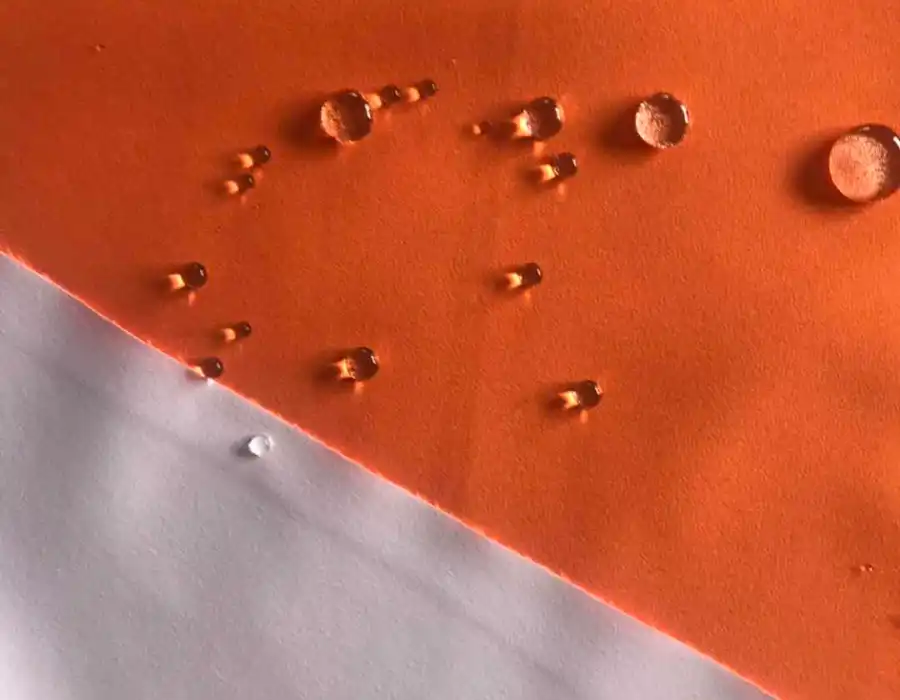

▶ PUL and TPU
These specialized waterproof laminates give you excellent protection. Polyurethane Laminate (PUL) combines polyester fabric with a polyurethane coating to create a waterproof yet breathable material. You can get PUL in 1-mil or 2-mil thicknesses, and it lasts for years of washing.
Thermoplastic Polyurethane (TPU) is a lighter and softer choice. It’s perfect for bedsheets and baby products.
▶ Vinyl and oilcloth
Vinyl and oilcloth are your best bet for durability. Vinyl, made from polyvinyl chloride (PVC), creates a solid waterproof sheet without any base fabric.
Oilcloth uses a cotton base with clear PVC coating. This makes oilcloth tougher but pricier—about £15 per meter compared to vinyl’s £8. You can’t machine wash either fabric, but they both block water completely.
▶ Gore-Tex and microfiber
Gore-Tex leads the pack as the premium waterproof-breathable option. It uses a microporous membrane that stops water but lets sweat escape. Gore-Tex has impressive waterproof ratings above 28,000mm and comes in three types: 2-layer (heavier, warmer), 2.5-layer (lightest), and 3-layer (most durable). Manufacturers often add extra coatings to make it completely waterproof.
Want to know what features Pongee Fabric has? As a top custom sportswear manufacturer, we know everything about different fabrics. Don’t worry, you can always ask us for help.
What Manufacturers Don’t Tell You About Durability And Care
Water resistant fabric manufacturers rarely tell you the whole story about durability. Product descriptions often hide the truth about longevity behind technical jargon or leave it out completely.
Impact of washing and drying
Your washing habits can make or break water resistant fabric durability. Water temperatures above 105°F/40°C speed up the breakdown of water-repellent treatments. Regular detergents have surfactants. These surfactants break down oils and water-resistant barriers. But you want to keep those barriers intact.
High-heat drying creates an interesting dilemma. It can briefly restore some water resistance by reactivating DWR treatments, but repeated exposure to high heat damages the fabric’s basic structure. Your best bet is to tumble dry on low heat or air dry to maintain water resistance without harming the fabric.
To extend the life of your water resistant gear:
- Use technical wash products designed for waterproof fabrics
- Stay away from fabric softeners
- Apply fresh DWR treatments after 10-20 washes
Environmental trade-offs of synthetic fabrics
Water resistant fabrics come with some uncomfortable environmental truths. Traditional fluorocarbon-based DWR treatments contain perfluorinated compounds (PFCs) that stay in the environment for generations. Many manufacturers still use these treatments while claiming their products are “eco-friendly.”
“Eco-friendly” alternatives often swap one issue for another. Non-fluorinated DWR treatments require more frequent reapplication. This can lead to higher total chemical use over the product’s lifespan.
Conclusion
Take time to assess what you really need before your next purchase. A 5,000mm rated fabric might be enough for light rain, while tough conditions just need ratings of 20,000mm or higher. The fabric’s makeup affects more than just water resistance – it changes breathability, comfort, and environmental impact too. We’re here to help at leelineSourcing.com or [email protected] if you need a China sourcing agent or want to learn more about quality water-resistant materials.
Suggested Reading
- 10 Best Hoodie Manufacturers Portugal: Your Next Power Move
- 10 Top Baseball Jersey Manufacturers in India: Quality Makers for 2025
- 10 Best T-Shirt Manufacturers In USA: Boosting Brand Margins
FAQs
1. How should I care for water-resistant fabrics to maintain performance?
Wash with mild detergents and avoid fabric softeners, as these can reduce water repellency. Manufacturers often omit that heat reactivation (e.g., low tumble drying) can restore DWR coatings.
2. Can water-resistant fabrics be breathable for activewear in 2025?
Advanced fabrics offer both breathability and water resistance. However, manufacturers might not admit that thicker coatings can reduce breathability. This reduction can cause discomfort during intense activities.
3. What are common applications for water-resistant fabrics?
They’re found in jackets, bags, shoes, and outdoor gear. However, manufacturers may not mention that heavy rain or being submerged can exceed water-resistant limits.
4. How do I know if a water-resistant fabric is high quality?
Check for reputable coatings (e.g., Gore-Tex, eVent) and test water beading; manufacturers may not reveal that low-quality coatings wear off quickly or fail under pressure.
